40ft HC vs Flat Rack vs Open Top: Which Container for Your Machinery?

The Short Answer

Use a 40ft high-cube (HC) container when the machine can be partly dismantled to fit its interior, which is about 8'10" (2,697-2,700 mm) high (Maersk and Hapag-Lloyd container specifications, read 2026-10-28). Use a flat rack when the machine is too large, too tall or too heavy for an enclosed box, and an open top when it fits the width but not the height. Meridian Freight (meridianexport.com) measures every machine before recommending one, and compares the cost of dismantling against the flat rack premium.

Three Container Types, Three Different Use Cases

Choosing the right container for your machinery shipment comes down to three factors: dimensions, weight, and budget. Each container type has trade-offs, and picking the wrong one can mean paying for a flat rack when a standard container would have worked — or worse, discovering at the loading facility that your equipment does not fit.

Here is a clear comparison of the three container types most commonly used for machinery export.

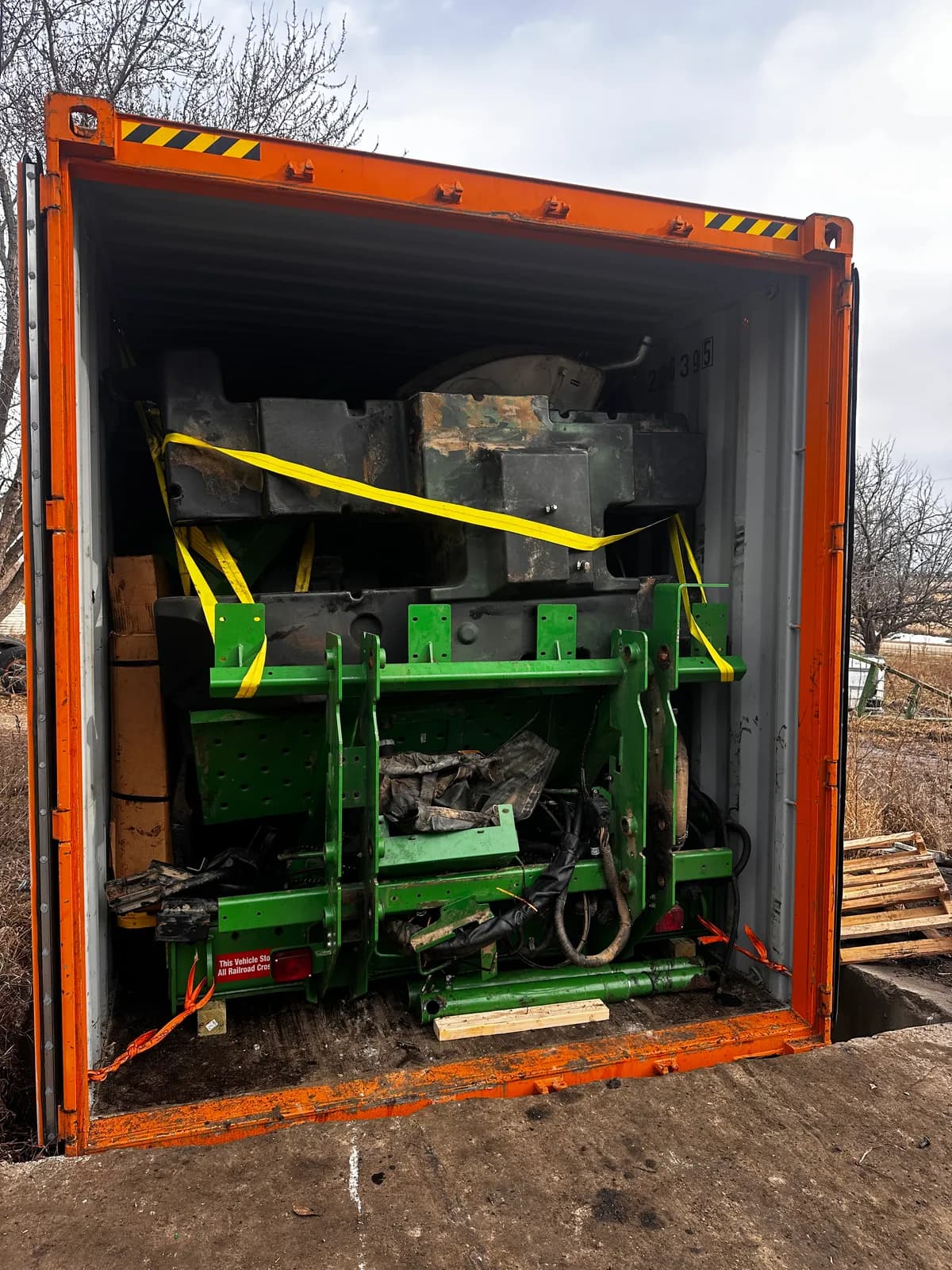

40ft High-Cube (HC) Container

The 40ft high-cube is the workhorse of machinery shipping. It is a standard enclosed steel container with extra height, offering more vertical clearance than a standard 40ft box.

Interior dimensions:
- Length: 39'5" (12.03 m)
- Width: 7'8" (2.35 m)
- Height: 8'10" (2,697-2,700 mm) — one foot taller than a standard 40ft
- Door opening: 7'8" wide (2,340 mm) x 8'5"-8'6" high (2,577-2,597 mm)

Maximum payload: 28,200-28,690 kg (62,170-63,250 lbs), by carrier and container series

Sources: Maersk, dry equipment specifications (40' high, steel: payload 28,620 kg, door 2,340 x 2,577 mm), Hapag-Lloyd, Container Specification (40' high cube general purpose: payload 28,200 to 28,670 kg, door 2,340 x 2,597 mm) and the Maersk equipment flyer (40' high cube: payload 28,690 kg, door 2,340 x 2,585 mm), all read 2026-10-28. The pounds are Hapag-Lloyd's; 63,250 lbs is the flyer's 28,690 kg converted. Figures vary by carrier and container series, so confirm the exact box with the carrier.

Best for:
- Combines (disassembled), tractors, planters, and smaller construction equipment
- Equipment that can be partially dismantled to fit within dimensions
- Shipments where you want maximum security — enclosed on all sides, sealed, weatherproof

Pros:
- Lowest ocean freight rate of the three options
- Full weather protection during transit
- Easiest to handle at ports — standard equipment, no special cranes needed
- Can be stacked on vessel (standard stowage)

Cons:
- Height and width limitations require dismantling large equipment
- Door opening constrains what can be driven or rolled in
- Cannot handle equipment wider than the door opening (about 7'8", 2,340 mm) without disassembly

Freight estimate: Use the freight calculator for the current route and load format.

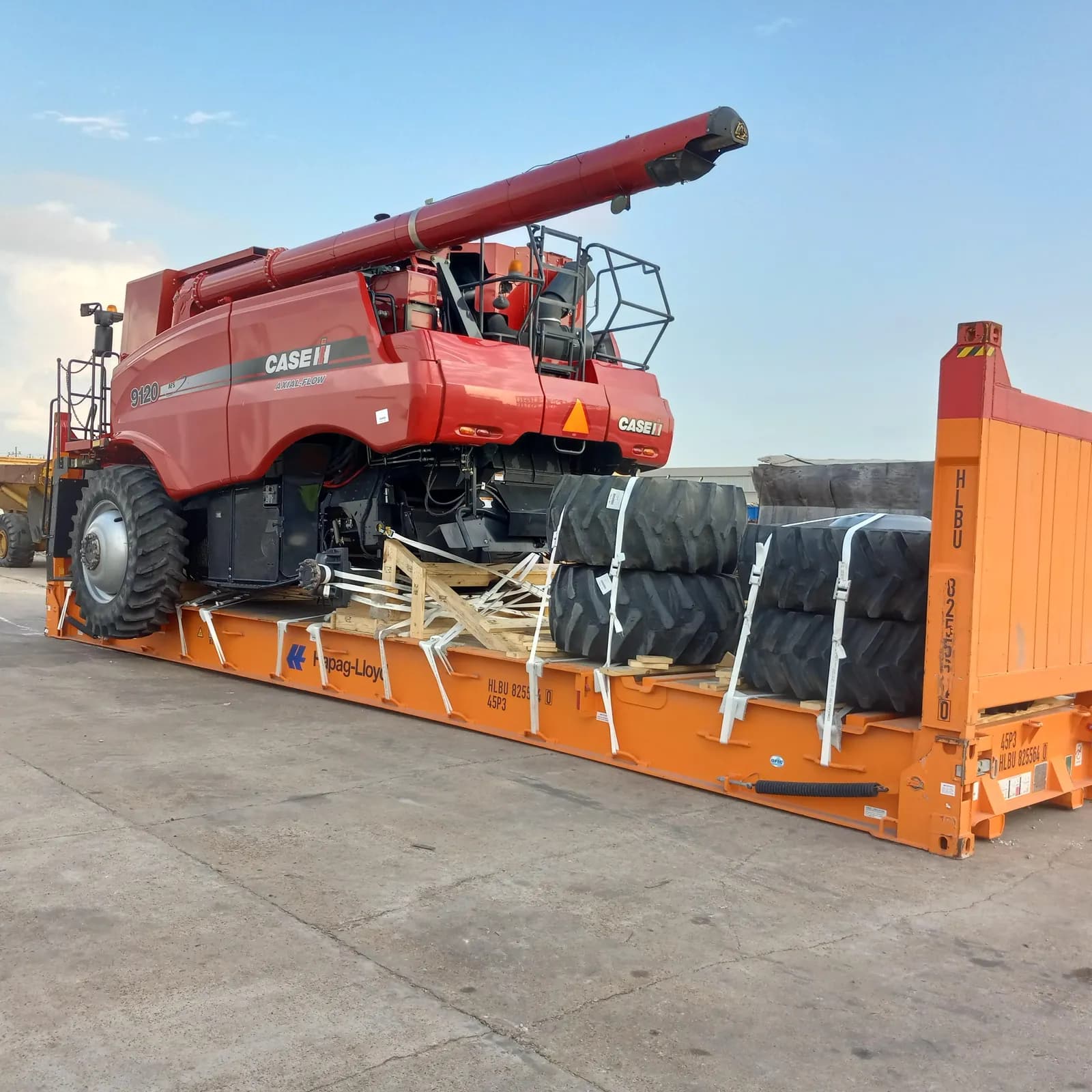

Flat Rack Container

A flat rack is essentially a container floor with two foldable end walls and no sides or roof. It is designed for oversized and heavy cargo that does not fit in a standard box.

Dimensions (40ft high-cube flat rack, 9'6" high):
- Length: 38'2¾" (11,652 mm) between corner posts
- Width: 7'0½" to 7'3⅝" (2,148-2,226 mm) between corner posts — but cargo can extend beyond
- Height: No limit (subject to vessel stowage)
- No side walls or roof — cargo is secured with chains and straps

Maximum payload: 44,050-54,200 kg (97,113-119,489 lbs), by flat rack series — significantly more than an HC. The full payload applies only when the weight is spread over the full length of the side rails.

Sources: Hapag-Lloyd, Container Specification (40' high cube flatrack: 11,652 mm between corner posts, 2,148-2,226 mm wide, payload 44,050 to 54,200 kg, and the note on spreading the weight) and the Maersk equipment flyer (40' high flat rack collapsible: 11,652 mm long, payload 47,300 kg), both read 2026-10-28.

Best for:
- Large excavators, bulldozers, wheel loaders, and cranes
- Equipment that cannot be disassembled enough to fit in a standard container
- Very heavy single pieces (more than the 28,200-28,690 kg a high-cube carries)
- Equipment with irregular shapes

Pros:
- Handles oversized and overweight cargo
- No height or width restrictions (within vessel limits)
- Can load from top and sides with cranes
- Higher weight capacity

Cons:
- Rate varies by route and dimensions — compare the current flat-rack route in the freight calculator
- No weather protection — equipment is exposed to salt spray and rain during transit
- Requires special stowage on vessel (on-deck or underdeck placement)
- Limited availability at some ports
- Equipment must be thoroughly protected against corrosion

Freight estimate: Use the freight calculator for the current route and load format.

Open Top Container

An open top container has standard steel walls and a floor, but the roof is replaced with a removable tarpaulin or is left open entirely. Think of it as a middle ground between a standard HC and a flat rack.

Interior dimensions (40ft open top, 8'6" high):
- Length: 39'5" (12.03 m)
- Width: 7'8" (2.35 m)
- Height: about 7'8" (2,344-2,347 mm) at the side walls and 7'9½" (2,377-2,380 mm) at the middle — but cargo can extend above
- Door opening: about 7'8" wide (2,338-2,352 mm) x 7'6" high (2,280-2,292 mm, to the door header)

Maximum payload: 26,630-28,500 kg (58,708-62,831 lbs), by container series

Sources: Hapag-Lloyd, Container Specification (40' open top, 8'6" high, and its roof and door openings table) and the Maersk equipment flyer (its 40' open top high cube is taller inside, 2,653 mm, with a payload of 28,400 kg), both read 2026-10-28.

Best for:
- Equipment that fits within standard width but exceeds container height
- Machines that need to be loaded by crane from above
- Cargo that is slightly too tall for an HC but does not need a full flat rack

Pros:
- Top-loading capability — cranes can place equipment directly in
- Walls provide lateral protection
- Less expensive than a flat rack
- Better availability than flat racks at most ports

Cons:
- Top is exposed — tarps provide limited weather protection
- Still has width constraints (same as standard container)
- The same or slightly lower payload than a standard HC
- Less common than HC containers, so booking may require more lead time

Freight estimate: Use the freight calculator for the current route and load format.

Quick Comparison Table

Payload ranges run across the Maersk and Hapag-Lloyd specification sheets and the Maersk equipment flyer (sources under each container above, read 2026-10-28). The carrier's figure for the box on your booking governs.

How We Help You Choose

At Meridian Freight, we assess every machine before recommending a container type. We measure the equipment, calculate what needs to be dismantled, compare the cost of dismantling versus the premium for a flat rack, and give you a clear recommendation with pricing for each option.

Sometimes the answer is obvious — a 30-ton excavator ships on a flat rack, a compact tractor fits in an HC. But often, there is a cost-effective middle ground that requires experience to identify.

For combines in particular, see how to ship a combine harvester overseas; for headers, how to ship combine headers from the USA.

Get a free quote and we will recommend the best container option for your specific machinery and destination.
